# 项目笔记

# 项目背景 （锋迷铺子）

通过互联网项目，应用微服务组件

垂直电商：B2C 运营平台【单体架构】、门户系统【分布式架构】

猫眼电影：https://maoyan.com/

马蜂窝旅游：http://www.mafengwo.cn/

江寓 (opens new window)：http://www.jiangroom.com/index.html

订餐小秘书：http://www.xiaomishu.com/

扣丁学堂：http://www.codingke.com/ 腾讯云、阿里云 【点播服务】

拍卖系统 艺术品

# 技术选型

# 后端技术

技术 说明 官网 技术在项目中的使用场景
SpringBoot 容器+MVC框架 https://spring.io/projects/spring-boot
springcloud-alibaba 微服务组件 https://github.com/alibaba/spring-cloud-alibaba/wiki/
SpringSecurity 认证和授权框架 https://spring.io/projects/spring-security
MyBatis-Plus ORM框架 https://baomidou.com/
Redis 分布式缓存 https://redis.io/
Nginx 静态资源服务器 https://www.nginx.com/
RocketMQ 消息队列 https://github.com/alibaba/druid
elasticsearch 搜索引擎 https://www.elastic.co/cn/elasticsearch/
JWT JWT登录支持 https://github.com/jwtk/jjwt
Hutool Java工具类库 https://github.com/looly/hutool
Swagger-UI 文档生成工具,接口文档 https://github.com/swagger-api/swagger-ui
Springtask 定时任务
Seata 分布式事务
Redisson 分布式锁
Freemarker 网页静态化技术

# 前端技术

技术 说明 官网
Vue 前端框架 https://vuejs.org/
Vue-router 路由框架 https://router.vuejs.org/
ElementUI（基于vue）layui（基于jquery） 前端UI框架 https://element.eleme.io (opens new window)
Axios 前端HTTP框架 https://github.com/axios/axios
Echarts Echarts的图表框架 https://v-charts.js.org/

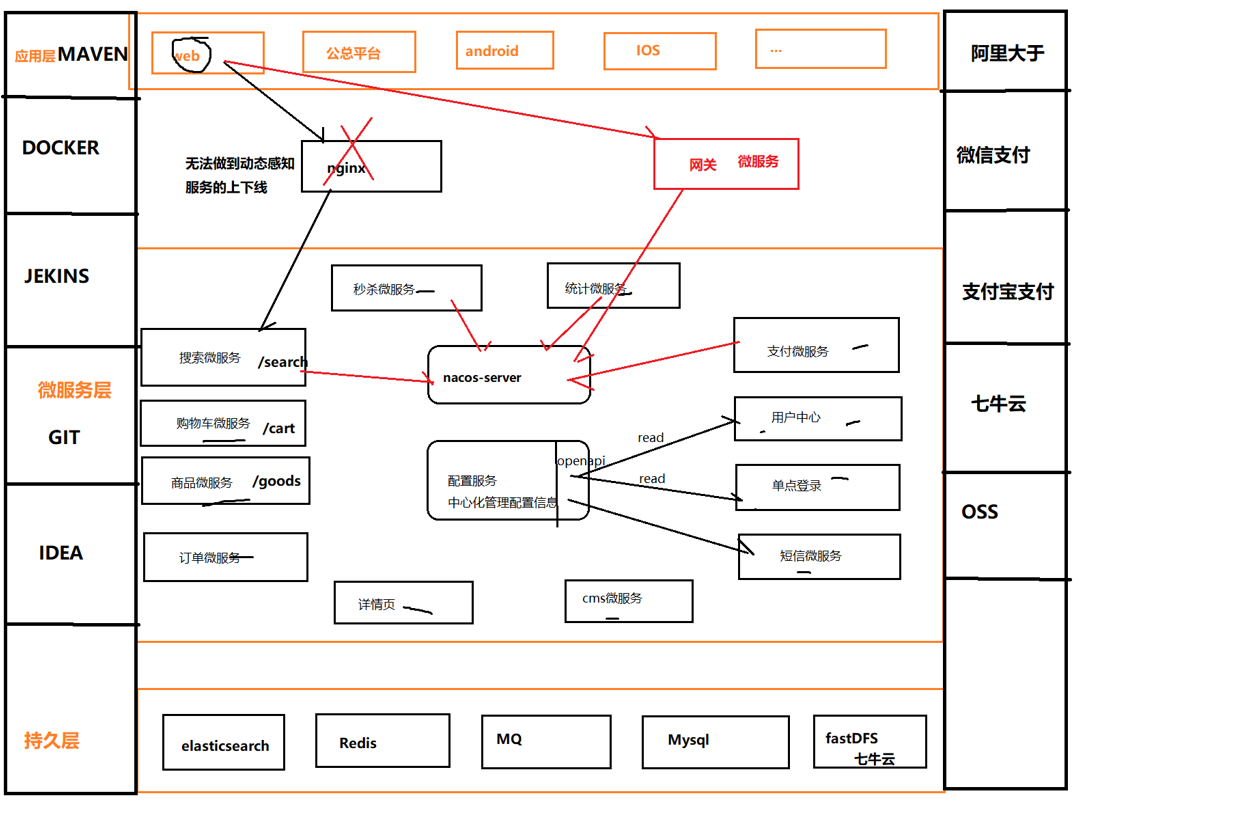

# 项目技术架构

image-20220725053055346

# 工程搭建

# 后台工程搭建

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>fengmi-mall</artifactId>
    <version>1.0-SNAPSHOT</version>


    <!--    父工程的职责：锁定版本    springboot、springcloud、springcloud-alibaba-->

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <!--   定义变量     -->
        <env>dev</env>
        <mysql.version>5.1.47</mysql.version>
    </properties>

    <build>
        <resources>
            <resource>
                <directory>src/main/resources/</directory>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.2.5.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR8</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

        </dependencies>
    </dependencyManagement>




</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

服务的基础依赖

 <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.2</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.23</version>
        </dependency>

     <!-- 以下暂时不需要
      <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
            <version>2.8.0</version>
        </dependency>

        <dependency>
            <groupId>com.fengmi</groupId>
            <artifactId>fengmi-entity</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency> -->


    </dependencies>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

服务的通用配置

spring:
  zipkin:
    base-url: http://localhost:9999
    discovery-client-enabled: false
  sleuth:
    sampler:
      rate: 100
  datasource:
    druid:
      driver-class-name: com.mysql.jdbc.Driver
      username: root
      password: 123456
      url: jdbc:mysql://127.0.0.1:3306/fengmi_mall?useUnicode=true&characterEncoding=utf8&useSSL=false
      max-active: 600 #连接池配置
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848   #指定nacos-server的服务地址
        username: nacos
        password: nacos
        namespace: dev #将服务发布到指定的命名空间，如果不指定就是默认的命名空间(public)
        group: DEFAULT_GROUP #将服务发布到指定group，如果不指定就是默认的（DEFAULT_GROUP）
    sentinel:
      transport:
        dashboard: localhost:8888  #指定dashborad地址
        port: 8719
      eager: true
      web-context-unify: false
      datasource:
        flow:
          nacos:
            server-addr: ${nacos.server-addr}
            username: ${nacos.username}
            password: ${nacos.password}
            namespace: ${nacos.namespace}
            groupId: SENTINEL_GROUP
            dataId: ${spring.application.name}-flow-rules
            rule-type: flow
        degrade:
          nacos:
            server-addr: ${nacos.server-addr}
            username: ${nacos.username}
            password: ${nacos.password}
            namespace: ${nacos.namespace}
            groupId: SENTINEL_GROUP
            dataId: ${spring.application.name}-degrade-rules
            rule-type: degrade
        param-flow:
          nacos:
            server-addr: ${nacos.server-addr}
            username: ${nacos.username}
            password: ${nacos.password}
            namespace: ${nacos.namespace}
            groupId: SENTINEL_GROUP
            dataId: ${spring.application.name}-param-rules
            rule-type: param-flow
        system:
          nacos:
            server-addr: ${nacos.server-addr}
            username: ${nacos.username}
            password: ${nacos.password}
            namespace: ${nacos.namespace}
            groupId: SENTINEL_GROUP
            dataId: ${spring.application.name}-system-rules
            rule-type: system
        authority:
          nacos:
            server-addr: ${nacos.server-addr}
            username: ${nacos.username}
            password: ${nacos.password}
            namespace: ${nacos.namespace}
            groupId: SENTINEL_GROUP
            dataId: ${spring.application.name}-authority-rules
            rule-type: authority
feign:
  sentinel:
    enabled: true
nacos:
  server-addr: localhost:8848
  username: nacos
  password: nacos
  namespace: sentinel
seata:
  enabled: true
  tx-service-group: fengmi_tx_group
  enable-auto-data-source-proxy: true
  config:
    type: nacos
    nacos:
      server-addr: 127.0.0.1:8848
      group: DEFAULT_GROUP
      namespace: pro
      username: nacos
      password: nacos
      data-id: demo_tx_group-pro.properties

  registry: #发现seata-server
    type: nacos
    nacos:
      application: seata-server
      server-addr: 127.0.0.1:8848
      namespace: pro
      group: DEFAULT_GROUP
      username: nacos
      password: nacos
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105

jackson

    <dependencies>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>
    </dependencies>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

将项目fengmi_XX改为fengmi-XX，需要重启nacos

# 前端工程搭建

taskkill /IM nginx.exe /F

# 敏捷开发工具

# 1：任务跟踪工具

https://www.tapd.cn/

# 2：代码版本管理工具

后台：https://gitee.com/zhuximing/fengmi_mall.git

前端：https://gitee.com/zhuximing/fengmi_mall_front.git

git

1:创建本地仓库

2：创建忽略文件

3：将代码推送到本地仓库，生成一个版本

4：创建远程仓库

5：推送本地仓库代码到远程仓库

6：从远程仓库clone代码

7：解决代码合并冲突的问题

8：创建分支

9：分支合并

# 模块开发

# 一：首页

# 1.1：功能

1：内容

2：商品分类展示

3：热门商品展示

# 1.2：表设计

相关表：

cms_content、cms_content_cat

mall_goods_cat、mall_goods

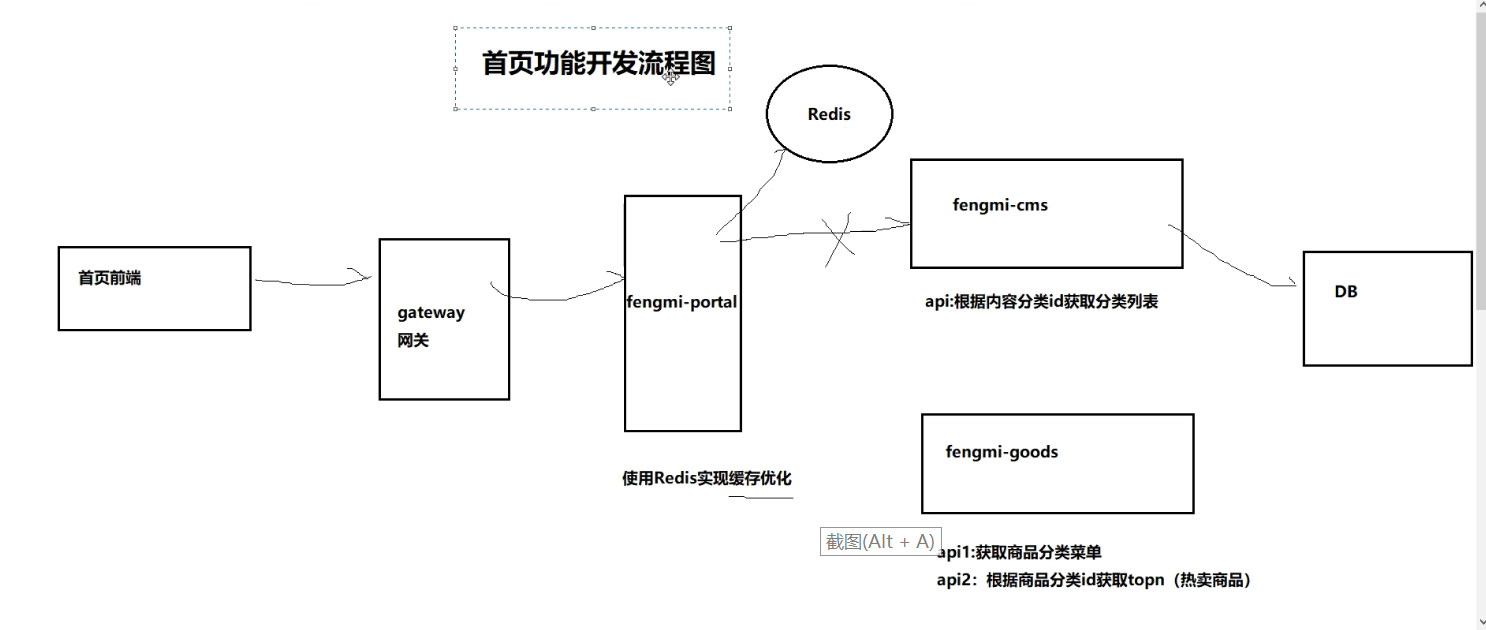

# 1.3：首页流程（架构）

image-20220725080001965

# 1.4：功能开发

轮播图

spring:
  datasource:
    druid:
      driver-class-name: com.mysql.jdbc.Driver
      username: root
      password: 123456
      url: jdbc:mysql://127.0.0.1:3306/fengmi_mall?useUnicode=true&characterEncoding=utf8&useSSL=false
      max-active: 40 #连接池配置
  cloud:
    nacos:
      discovery:
        server-addr:  localhost:8848 #指定nacos的服务地址
        username: nacos #指定用户名
        password: nacos #指定密码
        namespace: sit
        group: DEFAULT_GROUP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
spring:
  cloud:
    nacos:
      config:
        server-addr: localhost:8848
        namespace: sit
        prefix: fengmi-cms
        file-extension: yml
        shared-dataids: common.yml
        refreshable-dataids: common.yml
  profiles:
    active: sit
1
2
3
4
5
6
7
8
9
10
11
12

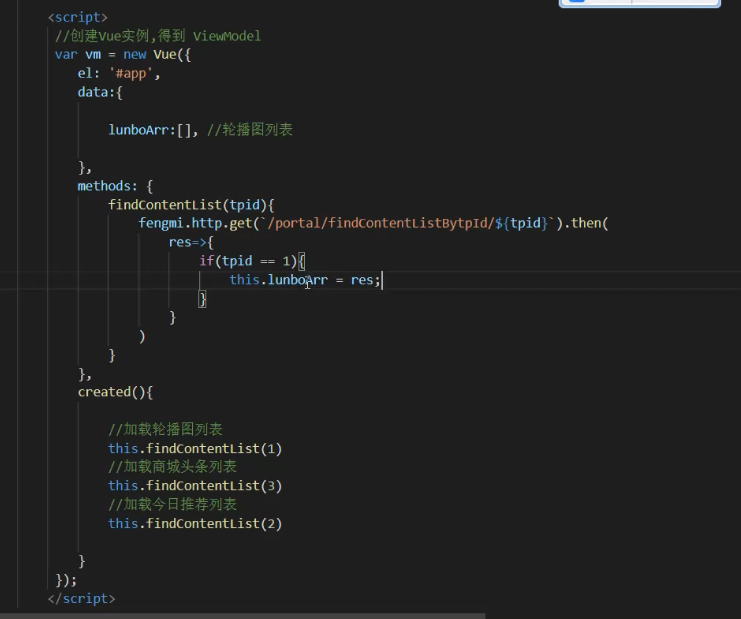

首页主要代码：

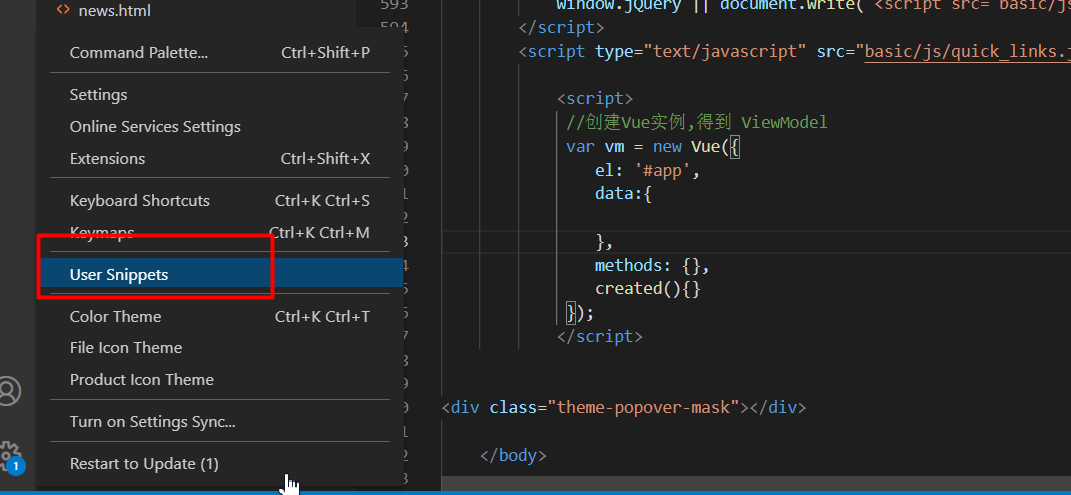

vsCode安装插件 Vetur和Vue 3 Snippets，

image-20220727044857619

跨域问题解决

640行延时轮播

redis缓存问题

# 1.5 热销商品开发

按照首页轮播思路进行

# 二：站内搜索

# 2.1：功能

1：解决冷启动（将数据库中已经审核通过的商品同步到elasticsearch）

2：搜索功能【基于es搜索】

​ a)：关键字搜索

​ 关键字匹配【商品标题、商品品牌、商品第三级分类】【复合查询should】

​ 分页、高亮

​ b)：显示过滤面板

​ 分桶【品牌、商品第三级分类】

​ c)：过滤【品牌、商品第三级分类】

​ d)：排序【价格优先】

3：商品审核通过后，必须同步索引库

# 2.2：域设计

1：类型
2：是否建立索引
3：是否存储
4：要不要分词、采用哪种分词
1
2
3
4

spu、sku

package com.wfx;

import lombok.Data;
import org.springframework.data.annotation.Id;
import org.springframework.data.elasticsearch.annotations.Document;
import org.springframework.data.elasticsearch.annotations.Field;
import org.springframework.data.elasticsearch.annotations.FieldType;

import java.util.Date;
@Data
@Document(indexName = "es-goods",  shards = 1, replicas = 0)
public class ESGoods {
    @Id
    private Long spuId;                        // spuId

    @Field(type = FieldType.Text, analyzer = "ik_max_word",store=true)
    private String goodsName;

    @Field(type=FieldType.Long,index=true,store=true)
    private Long brandId;                       // 品牌id

    @Field(type = FieldType.Keyword,index=true,store=true)
    private String brandName;                   //品牌名称

     @Field(type=FieldType.Long,index=true,store=true)
    private Long cid1id;                        // 1级分类id
    @Field(type = FieldType.Keyword,index=true,store=true)
    private String cat1name;                    // 1级分类名称

     @Field(type=FieldType.Long,index=true,store=true)
    private Long cid2id;                        // 2级分类id
     @Field(type = FieldType.Keyword,index=true,store=true)
    private String cat2name;                    // 2级分类名称


    @Field(type=FieldType.Long,index=true,store=true)
    private Long cid3id;                        // 3级分类id
     @Field(type = FieldType.Keyword,index=true,store=true)
    private String cat3name;                    // 3级分类名称

	 @Field(type=FieldType.Date,index=true,store=true)
    private Date createTime;                    // 创建时间
    @Field(type=FieldType.Double,index=true,store=true)
    private Double price;                       // 价格，spu默认的sku的price
    @Field(type = FieldType.Keyword,index = false,store=true)
    private String smallPic;                    // 图片地址
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

# 2.3：开发流程

功能1：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wfx.mapper.WxbGoodsMapper">

        <!-- List<WxbGoods> findGoodsSpuInfo();-->

    <resultMap id="findGoodsSpuInfoMap" type="WxbGoods">
        <result property="id" column="spuId"></result>
        <result property="sellerId" column="seller_id"></result>
        <result property="goodsName" column="goods_name"></result>
        <result property="price" column="default_price"></result>
        <result property="typeTemplateId" column="template_id"></result>
        <result property="smallPic" column="small_pic"></result>
        <!-- 品牌-->
        <association property="brand" javaType="WxbGoodsBrand">
            <id property="id" column="brand_id"></id>
            <result property="name" column="brand_name"></result>
        </association>
        <!-- 一级分类-->
        <association property="cat1" javaType="WxbGoodsCat">
            <id property="id" column="cat1id"></id>
            <result property="name" column="cat1name"></result>
        </association>
        <!-- 二级分类-->
        <association property="cat2" javaType="WxbGoodsCat">
            <id property="id" column="cat2id"></id>
            <result property="name" column="cat2name"></result>
        </association>
        <!-- 三级分类-->
        <association property="cat3" javaType="WxbGoodsCat">
            <id property="id" column="cat3id"></id>
            <result property="name" column="cat3name"></result>
        </association>
    </resultMap>


    <select id="findGoodsSpuInfo" resultMap="findGoodsSpuInfoMap">

            SELECT
            goods.id as spuId,
            goods.seller_id ,
            goods.goods_name,
            goods.price as default_price,
            goods.small_pic,
            brand.id as brand_id,
            brand.`name` as brand_name,
            cat1.id as cat1id,
            cat1.`name` as cat1name,
            cat2.id as cat2id,
            cat2.`name` as cat2name,
            cat3.id as cat3id,
            cat3.`name` as cat3name,
            cat3.template_id

             from wxb_goods goods
            LEFT JOIN wxb_goods_brand brand on brand.id = goods.brand_id
            LEFT JOIN wxb_goods_cat cat1 on cat1.id = goods.category1_id
            LEFT JOIN wxb_goods_cat cat2 on cat2.id = goods.category2_id
            LEFT JOIN wxb_goods_cat cat3 on cat3.id = goods.category3_id
			where goods.audit_status=1
    </select>



</mapper>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

image-20210517174748121

image-20210517174807654

{"h5 template": {
	"prefix": "app", // 对应的是使用这个模板的快捷键
	"body": [
	 "\t<script>",
	 "\t //创建Vue实例,得到 ViewModel",
	 "\t var vm = new Vue({",
	 "\t\tel: '#app',",
	 "\t\tdata:{\n",
	 "\t\t},",
	 "\t\tmethods: {},",
	 "\t\tcreated(){}",
	 "\t });",
	 "\t</script>"
	],
	"description": "HT-H5" // 模板的描述
 }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
上次更新: 2024/4/13

网页静态化技术 →
